Applications: Electronic blood pressure monitors, ventilators, oxygen concentrators and other medical fields; Tire pressure monitors, MAP and other automotive electronic fields; Massage chair, massages and other fitness equipment fields; Washing machines, coffee machines, pressure instruments, and etc.

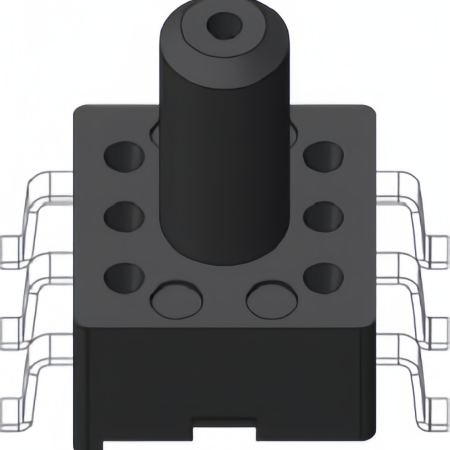

Features
Measuring range: 0~10kPa...200kPa
Absolute pressure type
Suitable for non-corrosive gases
Wide temperature compensation, low temperature drift
Proportional voltage output, 12C output, SPI output optional
Main Applications
Electronic blood pressure monitors, ventilators, oxygen concentrators and other medical fields; Tire pressure monitors, MAP and other automotive electronic fields; Massage chair, massages and other fitness equipment fields; Washing machines, coffee machines, pressure instruments and etc.
Specifications
Model | Measuring Range | Package Form | Pressure Type | Output Type | Comprehensive Accuracy (%FS) | Temperature Compensation(℃) |
MSPSG2010003KPAR | 0-3kPa | SOP6 | Gauge | Analog Proportional Voltage | 2 | 0~85 |
MSPSG2010003KPAR | 0-10kPa | SOP6 | Gauge | Analog Proportional Voltage | 1 | 10~40 |
MSPSG2010020KPAR | 0-20kPa | SOP6 | Gauge | Analog Proportional Voltage | 2.5 | 0~85 |
MSPSG2010040KPAR | 0-40kPa | SOP6 | Gauge | Analog Proportional Voltage | 1.5 | 0~85 |
MSPSG2010100KPAR | 0-100kPa | SOP6 | Gauge | Analog Proportional Voltage | 1 | 10~40 |
MSPSG2010200KPAR | 0-200kPa | SOP6 | Gauge | Analog Proportional Voltage | 1 | 10~40 |
MSPSG2010003KPD5 | 0-3kPa | SOP6 | Gauge | 12C/SPI | 2 | 0~85 |
MSPSG2010010KPD5 | 0-10kPa | SOP6 | Gauge | 12C/SPI | 1 | 10~40 |
MSPSG2010020KPD5 | 0-20kPa | SOP6 | Gauge | 12C/SPI | 2.5 | 0~85 |
MSPSG2010040KPD5 | 0-40kPa | SOP6 | Gauge | 12C/SPI | 2.5 | 0~85 |
MSPSG2010100KPD5 | 0-100kPa | SOP6 | Gauge | 12C/SPI | 1 | 10~40 |
MSPSG2010200KPD5 | 0-200kPa | SOP6 | Gauge | 12C/SPI | 1 | 10~40 |
More pressure ranges, comprehensive product accuracy and compensation temperature zones can be customized.
Dimensions and Pin Definitions
Analog Output | ||
No. | Definition | Function |
1 | NC | Hanging in the Air |
2 | NC | Hanging in the Air |
3 | GND | Power Ground |
4 | VDD | Power Supply Terminal |
5 | OUT | Voltage Output |
6 | NC | Hanging in the Air |
Digital Output | ||
No. | Definition | Function |
1 | NC | Hanging in the Air |
2 | SDA | 12C，SPI Communication Digital Line |
3 | SCL | 12C，SPI Communication Digital Line |
4 | CSB | SPI Chip Select Signal |
5 | VDD | Power Supply Terminal |
6 | GND | Power Ground |
