Applications: Medical fields such as ventilators, anesthesia machines, and blood analysis machines; industrial field such as HVAC systems; white goods appliances such as washing machines and liquid level measurement.
Features
Differential pressure types
Analog output or 12C output
Measuring range: -10~1kPa...10kPa
Comes with calibration and temperature compensation
5V power supply (3.3V power supply can be customized)
Main Applications
Medical fields such as ventilators, anesthesia machines, and blood analysis machines; industrial field such as HVAC systems; white goods appliances such as washing machines and liquid level measurement.
Specifications
Model | Measuring Range | Package Form | Pressure Type | Output Type | Comprehensive Accuracy (%FS) | Temperature Compensation (℃) |
MSPCD2010001KPA5 | -1~1kPa | Ceramic Seal | Differential Pressure | Analog Output | 1 | 0~50 |
MSPCD2012500PAA5 | -2.5~2.5kPa | Ceramic Seal | Differential Pressure | Analog Output | 1 | 0~50 |
MSPCD2010010KPA5 | -10~10kPa | Ceramic Seal | Differential Pressure | Analog Output | 1 | 0~50 |
MSPCD2010001KPD5 | -1~1kPa | Ceramic Seal | Differential Pressure | 12C | 1 | 0~50 |
MSPCD2012500PAD5 | -2.5~2.5kPa | Ceramic Seal | Differential Pressure | 12C | 1 | 0~50 |
MSPCD2010010KPD5 | -10~10kPa | Ceramic Seal | Differential Pressure | 12C | 1 | 0~50 |
More pressure ranges, comprehensive products accuracy and compensation temperature zones can be customized.

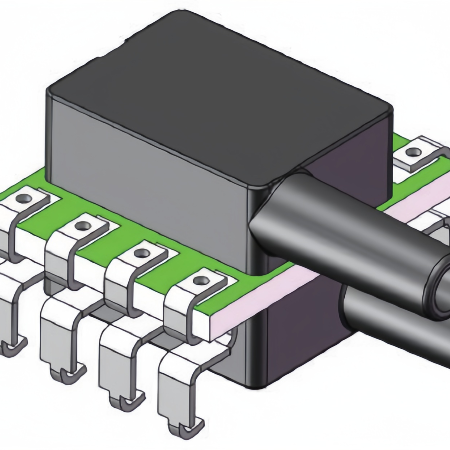

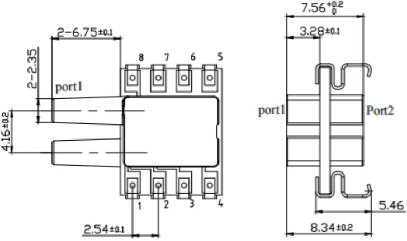

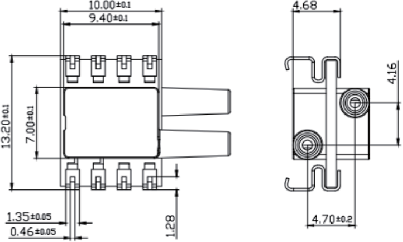

Dimensions and Pin Definitions
Analog Output | ||
No. | Definition | Function |
1 | NC | Hanging in the Air |
2 | VDD | Power Supply |
3 | VOUT | Output |
4 | GND | Power Ground |
5/6/7/8 | NC | Hanging in the Air |
Digital Output | ||
No. | Definition | Function |
1 | GND | Power Ground |
2 | VDD | Power Supply |
3 | SDA | 12C Communication Digital Line |
4 | SCL | 12C Communication Digital Line |
5/6/7/8 | NC | Hanging in the Air |
