Application:Barometer; TMAP; TPMS/handheld tire pressure gauge and handheld pressure gauge; Absolute pressure control system; Engine control; Atmospheric pressure measurement.
Features
Absolute pressure type
High accuracy
Good consistency
Measuring range: 0~100kPa...1600kPa
Fluorosilicate protection effectively avoids the influence of moisture, oil, weak acids and alkalis
Analog voltage output, calibrated for compensation
5V power supply (3.3V power supply can be customized)
Main Applications
Barometer; TMAP; TPMS/handheld tire pressure gauge and handheld pressure gauge; Absolute pressure control system; Engine control; Atmospheric pressure measurement, and etc.
Specifications
Model | Measuring Range | Package Form | Pressure Type | Output Type | Comprehensive Accuracy (%FS) | Temperature Compensation(℃) |
MSPSA2010115KPA5 | 15~115kPa | SOP8 | Absolute Pressure | Analog Output | ±1.5 | 0~85 |
MSPSA2010250KPA5 | 20~250kPa | SOP8 | Absolute Pressure | Analog Output | ±1.5 | 0~85 |
MSPSA2010400KPA5 | 20~400kPa | SOP8 | Absolute Pressure | Analog Output | ±1.5 | 0~85 |
MSPSA2010800KPA5 | 100~800kPa | SOP8 | Absolute Pressure | Analog Output | ±1.5 | 0~85 |
MSPSA2011100KPA5 | 100~1100kPa | SOP8 | Absolute Pressure | Analog Output | ±1.5 | 0~85 |
MSPSA2011600KPA5 | 100~1600kPa | SOP8 | Absolute Pressure | Analog Output | ±1.5 | 0~85 |
More pressure range, comprehensive product accuracy and temperature compensation ranges can be customized.

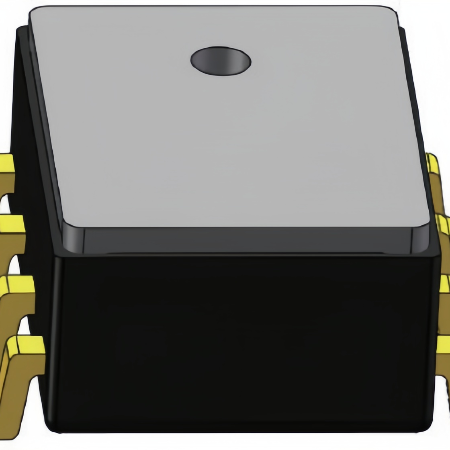

Dimensions and Pin Definitions
Pin Number | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 |
Pin Definition 1 | NC | NC | NC | NC | VOUT | GND | VDD | VDDF |
