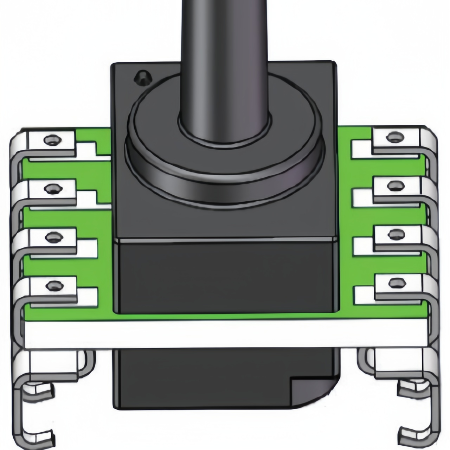

Application: Medical fields such as ventilators, anesthsia machines, and blood analysis machines; industrial fields such as HVAC systems; white goods appliances such as washing machines and liquid level measurement.
Features
Differential pressure type
Analog output or 12C output
Measuring range: 0~10kPa...700kPa
Comes with calibration and temperature compensation
5V power supply (3.3V power supply can be customized)
Main Applications
Medical fields such as ventilators, anesthsia machines, and blood analysis machines; industrial fields such as HVAC systems; white goods appliances such as washing machines and liquid level measurement.
Specifications
Model | Measuring Range | Package Form | Pressure Type | Output Type | Comprehensive Accuracy (%FS) | Temperature Compensation(℃) |
MSPCG2010010KPA5 | 0-10kPa | Ceramic Seal | Gauge | Analog Proportional Voltage | 1 | 0~50 |
MSPCG2010020KPA5 | 0-20kPa | Ceramic Seal | Gauge | Analog Proportional Voltage | 1 | 0~50 |
MSPCG2010040KPA5 | 0-40kPa | Ceramic Seal | Gauge | Analog Proportional Voltage | 1 | 0~50 |
MSPCG2010700KPA5 | 0-700kPa | Ceramic Seal | Gauge | Analog Proportional Voltage | 1 | 0~50 |
MSPCG2010010KPD5 | 0-10kPa | Ceramic Seal | Gauge | 12C | 1 | 0~50 |
MSPCG2010020KPD5 | 0-20kPa | Ceramic Seal | Gauge | 12C | 1 | 0~50 |
MSPCG2010040KPD5 | 0-40kPa | Ceramic Seal | Gauge | 12C | 1 | 0~50 |
MSPCG2010700KPD5 | 0-700kPa | Ceramic Seal | Gauge | 12C | 1 | 0~50 |
More pressure ranges, comprehensive product accuracy and compensation temperature zones can be customized.
Dimensions and Pin Definitions
Analog Output | ||
No. | Definition | Function |
1 | NC | Hanging in the Air |
2 | VDD | Power Supply |
3 | VOUT | Output |
4 | GND | Power Ground |
5/6/7/8 | NC | Hanging in the Air |
Digital Output | ||
No. | Definition | Function |
1 | GND | Power Ground |
2 | VDD | Power Ground |
3 | SDA | 12C Communication Digital Line |
4 | SCL | 12C Communication Digital Line |
5/6/7/8 | NC | Hanging in the Air |
